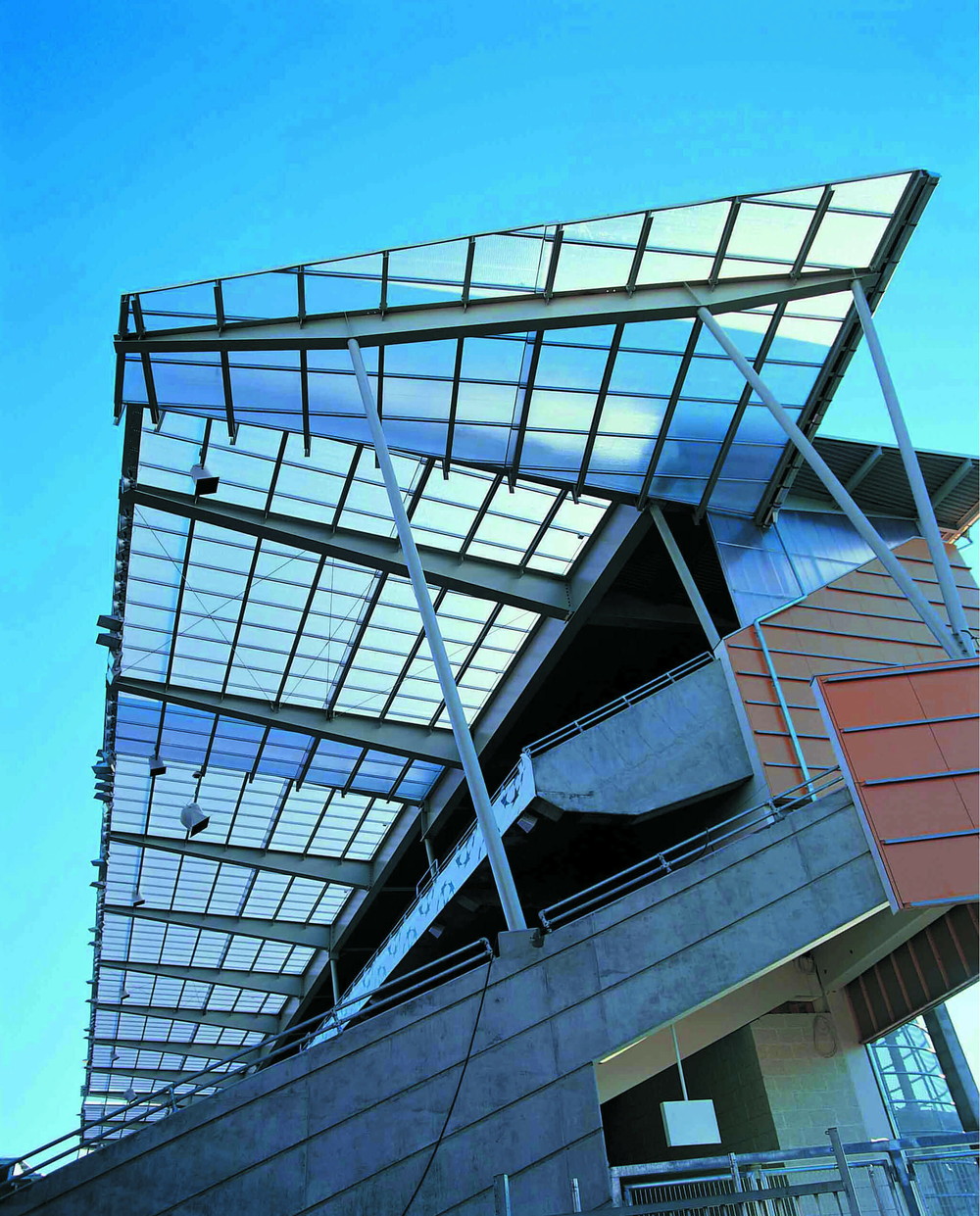

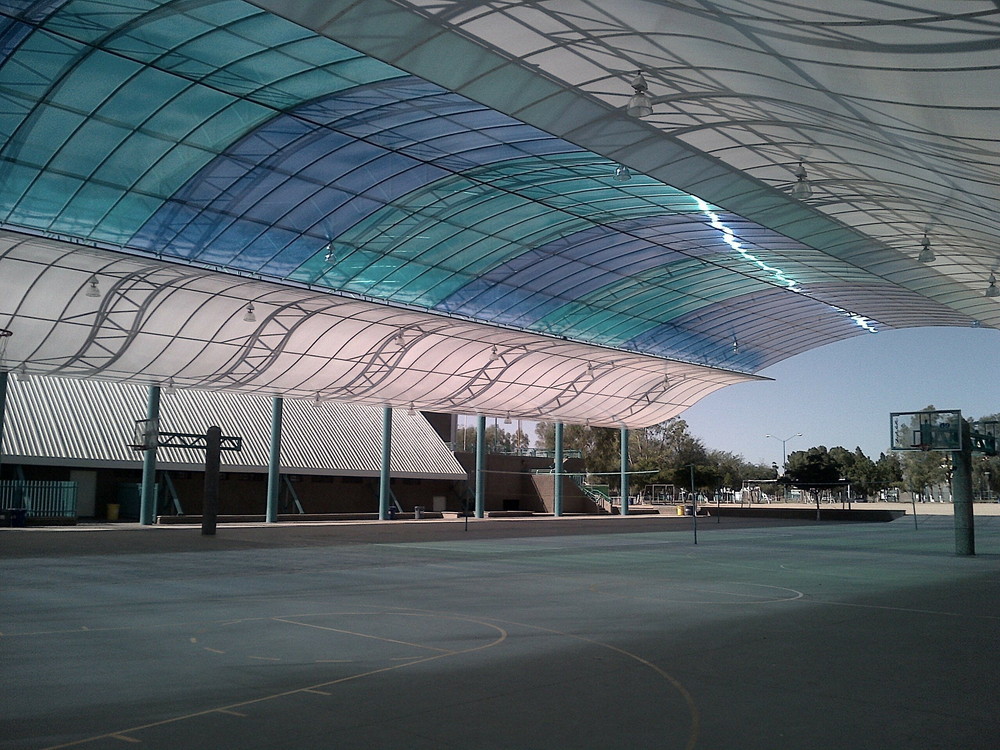

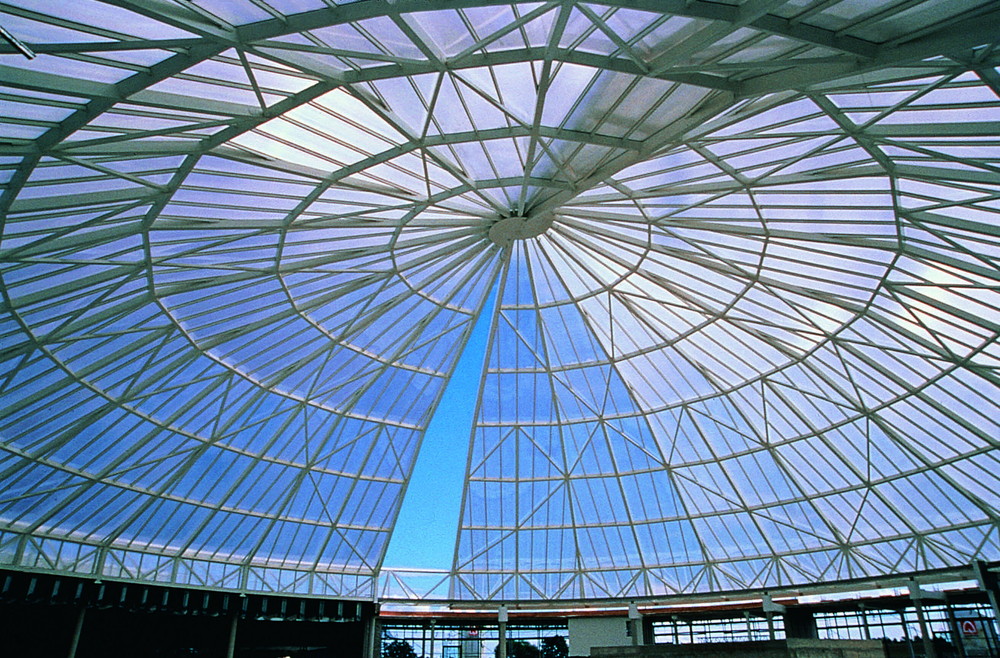

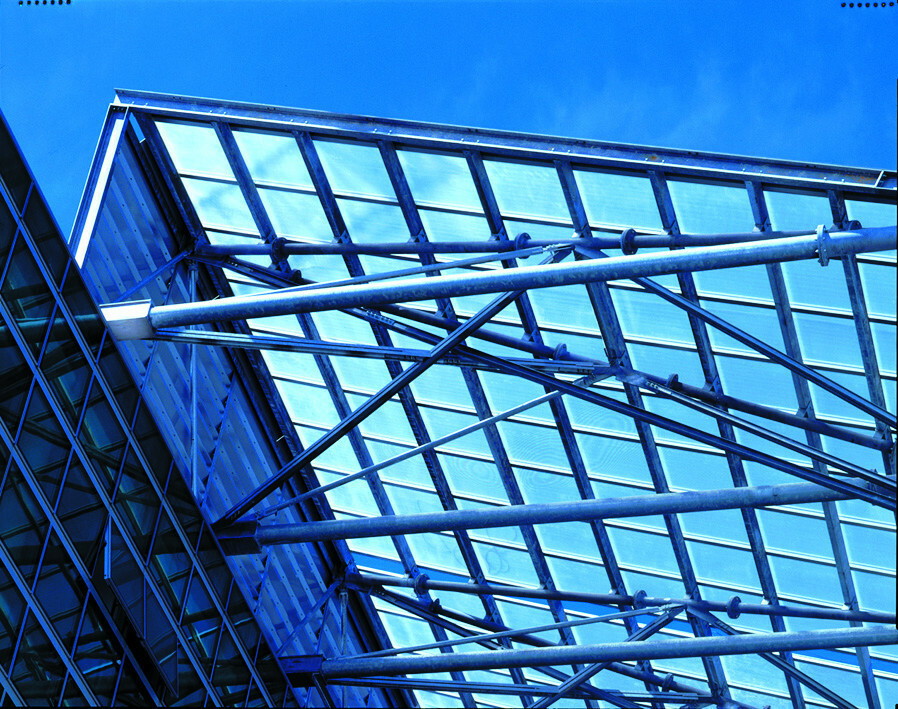

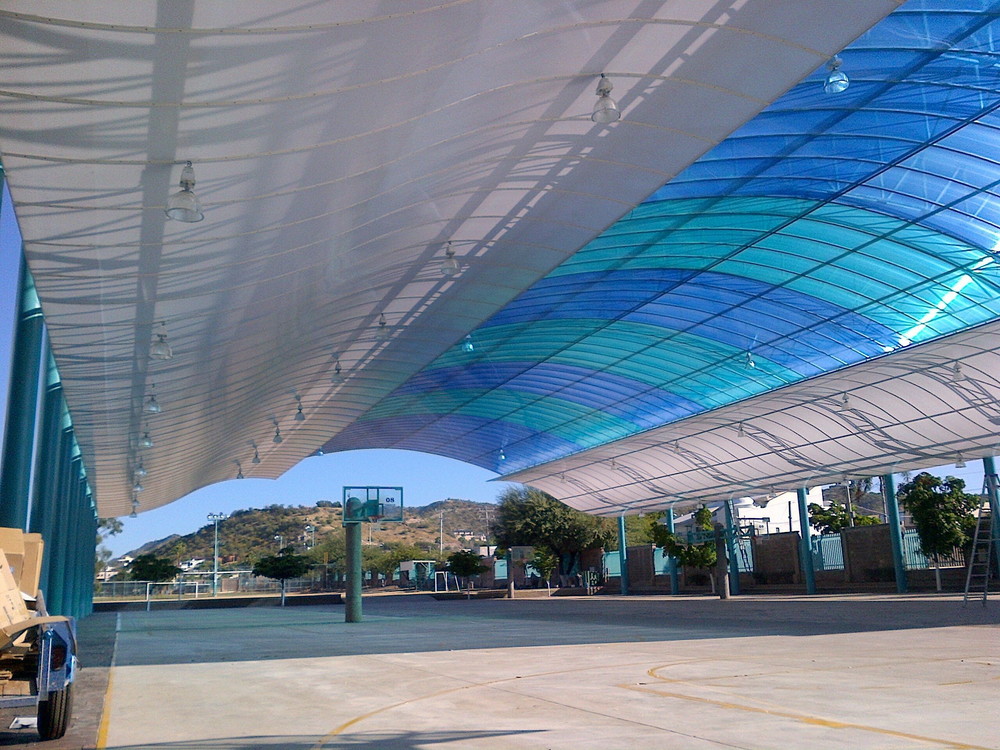

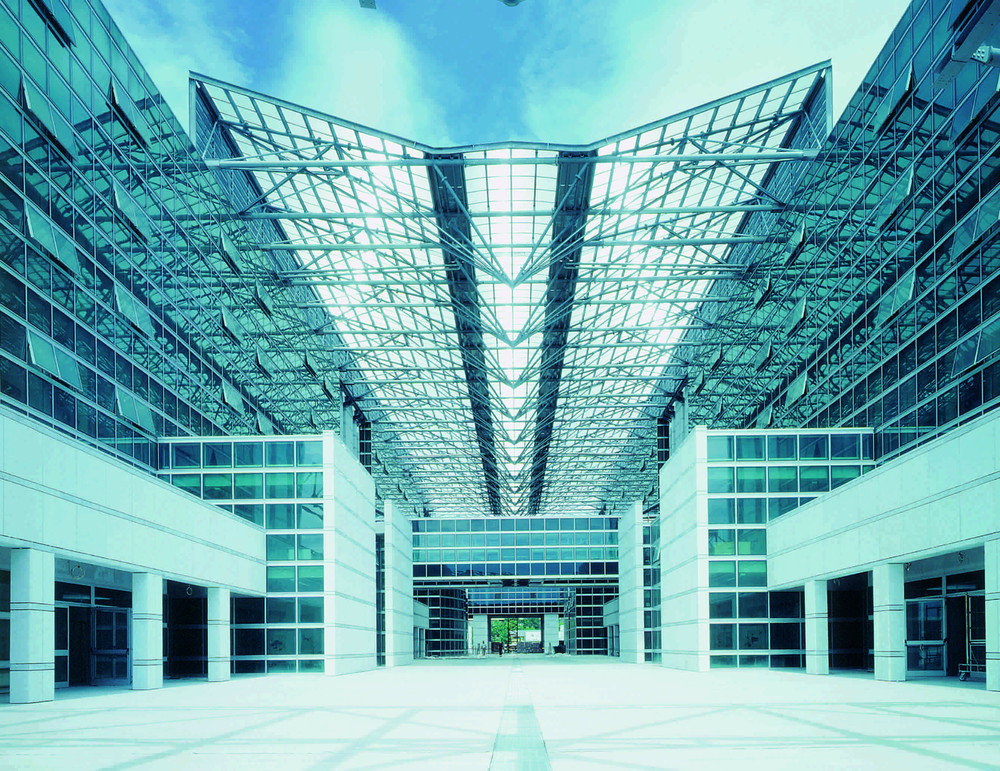

Features
- Lightweight
- Excellent light transmission
- Long life UV protection
- Damage and impact resistance
- Self-extinguishing
- Thermal insulation
- Withstands extreme temperatures
- Excellent appearance
Benefits
- Energy saving
- Contributes to obtain LEED Credits for sustainable constructions.
| Thickness | Weight (lb/ft2) | Weight (g/m2) | Light transmission crystal | Sound reduction index | Cold forming radius | Standard colors | ||
|---|---|---|---|---|---|---|---|---|

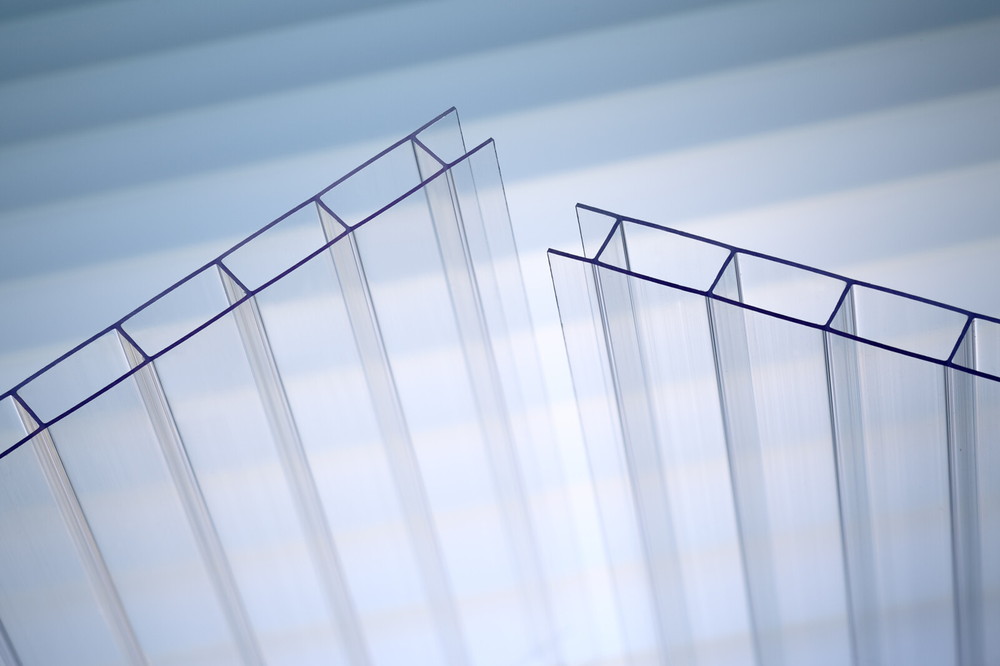

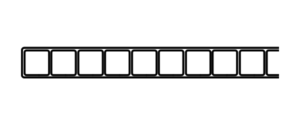

Twin Wall (2W) |  | 4 mm | 0.16 | 800 | 82% | N/A | 29.5 in | Crystal White Bronze Green Blue Smoke Grey Pearlescent Grey Opaline Red Yellow |
| 6 mm | 0.26 | 1300 | 80% | 10 | 39.4 in | |||
| 8 mm | 0.30 | 1500 | 80% | N/A | 49.2 in | |||
| 10 mm | 0.34 | 1700 | 80% | 16 | 59.1 in | |||

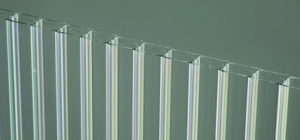

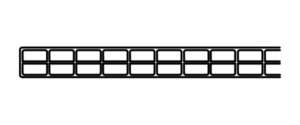

Triple Wall (3W) |  | 8 mm | 0.30 | 1500 | 74% | 14 | 51.2 in | |
| 10 mm | 0.34 | 1700 | 80% | N/A | N/A | |||

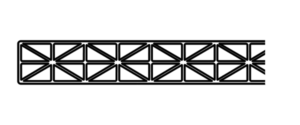

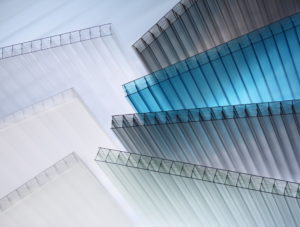

Triple Wall X-Structure (3WX/16) |  | 16 mm | 0.50 | 2500 | 59% | 21 | 94.5 in |

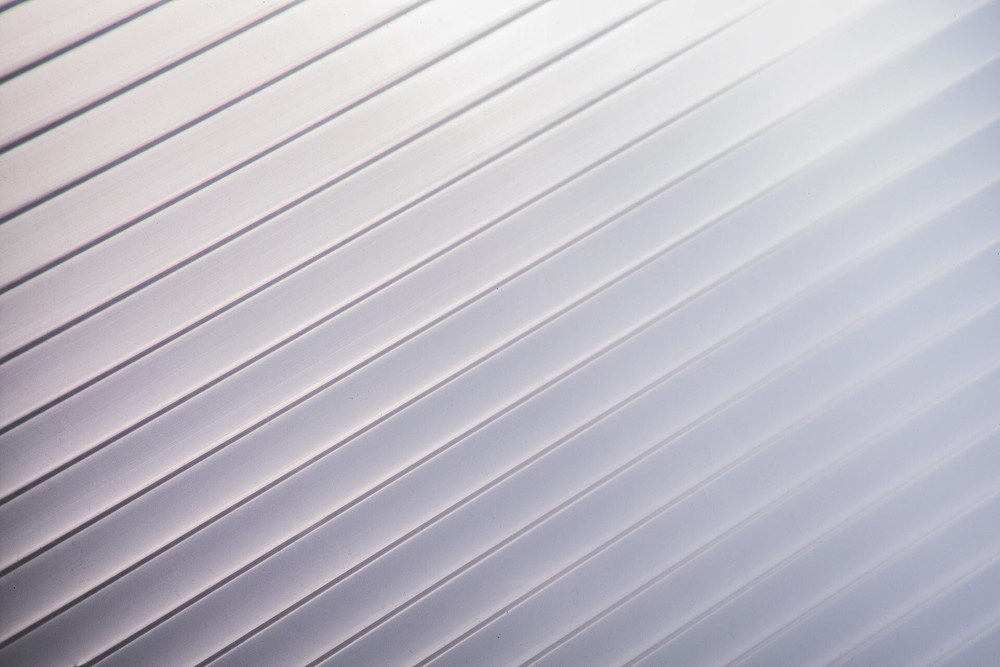

IQ-Relax for added heat reduction
Features advanced solar control properties, improved room comfort and high light transmission. (55.4 degrees Fahrenheit less inside temperature vs standard multiwall polycarbonate panel).

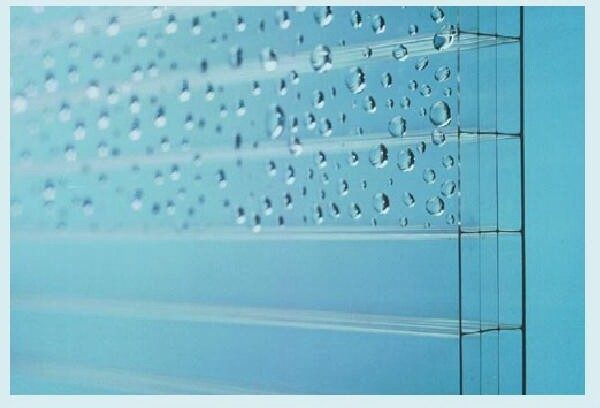

No-Drop for humid conditions
Features a special water dispensing layer that prevents drop formation in humid conditions typically found in greenhouses.

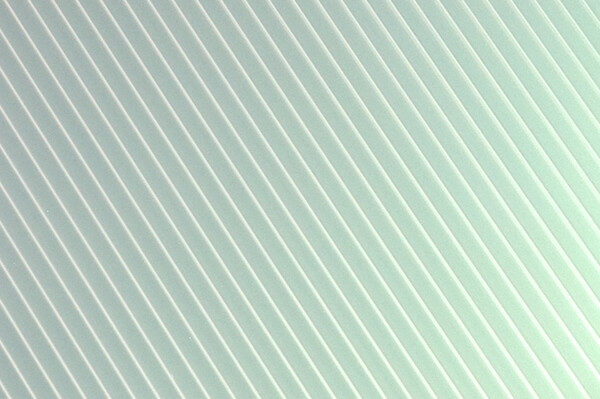

IQ-Selective
Offers an optimal combination of high light transmission from natural sunlight that enhances the photosynthesis process, and reduced temperatures by reflecting IR rays that cause extreme heat.

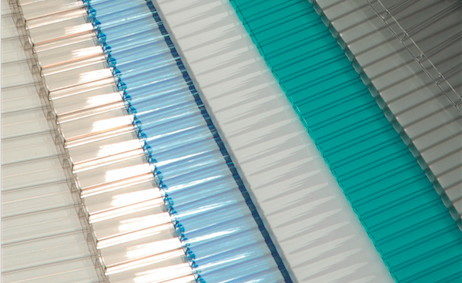

Double UV
Two sided UV protection for superior resistance which helps maintain long-term high light transmission and provides cutting and installation advantages.

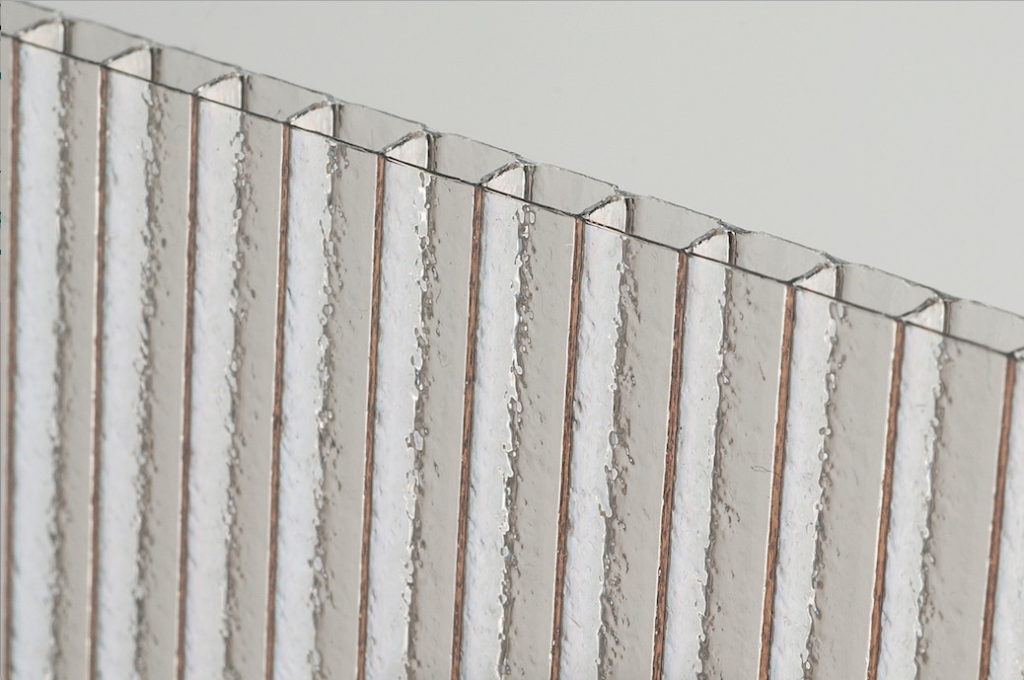

Frostyglass
Features a ground glass appearance, providing greater light diffusion.| Physical specification | |||||||
|---|---|---|---|---|---|---|---|
| Sheet Thickness | 4mm | 6mm | 8mm | 8mm | 10mm | 10mm | 16mm |
| Structure | Twin Wall | Twin Wall | Twin Wall | Triple Wall | Twin Wall | Triple Wall | Triple Wall X-Structure |
| Weight (lb/ft2) | 0.16 | 0.26 | 0.3 | 0.3 | 0.34 | 0.34 | 0.5 |
| Weight (g/m2) | 800 | 1300 | 1500 | 1500 | 1700 | 1700 | 2500 |
| Light Transmission {%) Clear | 82 | 80 | 80 | 80 | 80 | 80 | 59 |
| Light Transmission {%) Bronze | 52 | 50 | 50 | 50 | 46 | 46 | 31 |
| Light Transmission (%) Opal | 61 | 55 | 54 | 54 | 54 | 54 | 54 |
| Light Transmission (%) White | 37 | 23 | 19 | 19 | 15 | 15 | 4 |
| Width (in.) | 47.25", 48", 71.25", 72" and 82.67" | ||||||
| Length (ft.) | 8', 12', 18, 36'up to 48' | ||||||
| Gauges | 4mm(3/16"), 6mm(1/4"), 8mm(5/16"), 10mm(3/8"), 16mm(5/8") | ||||||
| Basic colors | Clear White Smoke | ||||||
| Technical Data | ||||||||
|---|---|---|---|---|---|---|---|---|
| Property/ Thickness | Unit | 4mm | 6mm | 8mm | 8mm | 10mm | 10mm | 16mm |
| Structure | Twin Wall | Twin Wall | Twin Wall | Triple Wall | Twin Wall | Triple Wall | Triple Wall X-Structure | |
| Thermal Insulation BTU/hr-ft2ºF (ASTM C976/90) | U-Value R- Value | 0.72 | 0.62 1.6 | 0.60 1.7 | 0.60 6.47 | 0.56 1.9 | 0.56 1.9 | 0.42 2.4 |
| Cold Forming Radius (Minimum permisible) | Inch | 29.5 | 39.4 | 49.2 | 49.2 | 59.1 | 59.1 | 94.5 |
| Heat expansion coefficient | Inch/ft °F | 4x10-4 | 4x10-4 | 4x10-4 | 4x10-4 | 4x10-4 | 4x10-4 | 4x10-4 |
| Max. permanent service temperature w/o load | °F | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
| Possible expansion due to Heat and Moisture | Inch/ Inch | 0.003 | 0.003 | 0.003 | 0.003 | 0.003 | 0.003 | 0.003 |
| Weighted sound reduction index | dB | N/A | 10 | N/A | N/A | 16 | N/A | 21 |
Structural Considerations
Load Deflection
When Macrolux Multiwall twin wall sheet is used as a structural element in roofs and walls, the forces applied by wind and snow loads must be absorbed by a suitable structure. Also, adequate locking devices must be used to protect the whole structure (PC sheet and metal or wood structure) against wind suction.
The anticipated structural load values are specified in local building regulations. The total applicable load deflects the sheet. For safety and aesthetic reasons, the maximum bend should be limited to 5% of the dimensions of the shorter side of the sheet.
For a 4' wide sheet:
| Maximum Purlin Spacing (inches) sheet deflection -1" | ||||
|---|---|---|---|---|
| Load (lb-f/ft2) | 15 | 30 | 45 | 60 |
| 6mm | 31" | 24" | 12" | - |
| 8mm | 38" | 28" | 18" | 10" |
| 10mm | 45" | 34" | 28" | 24" |
| 16mm | 75" | 43" | 36" | 30" |
For a 6' wide sheet:
| Maximum Purlin Spacing (inches) Sheet Deflection -1" | ||||
|---|---|---|---|---|
| Load (lb-f/ft2) | 15 | 30 | 45 | 60 |
| 6mm | 25" | 9" | - | - |
| 8mm | 36" | 26" | 12" | - |
| 10mm | 44" | 33" | 27" | 20" |
| 16mm | 60" | 40" | 36" | 30" |
Heat Expansion Macrolux Multiwall PC sheet has a higher heat expansion coefficient than standard construction materials such as glass, steel and aluminum. Specific clearance between the sheet and the structural frame has to be calculated in order to ensure proper installation.
| Material | Heat Expansion Coefficient (inch/ftºF) | |||
|---|---|---|---|---|
| Macrolux Multiwall | 4 x 10-4 | |||
| Glass | 5 x 10-5 | |||
| Steel | 8 x 10-5 | |||
| Aluminum | 1.6 x 10-4 | |||
Fire Behavior Macrolux Multiwall PC sheet is produced using high-quality polycarbonate resin made by Bayer. It does not burn easily and has been defined as a self-extinguishable material by international standards in different countries.
| ASTM | CLASSIFICATK | |||
|---|---|---|---|---|
| ASTM E84-01 | ClassA (NFPA); Class (UBC) | |||
| ASTM D635-74 | Class CC1 | |||
| ASTM D2843-93 | Low Smoke Density (UBC standard No. 26-5) | |||
| ASTM D1929-68 | Self Ignition Temperature greater than 650ºCF | |||
Light transmission

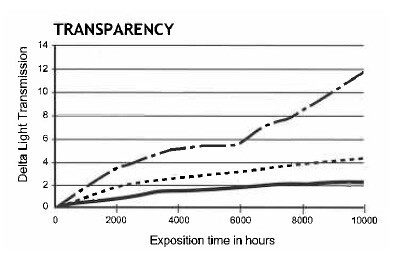

Change in the light transmission of PC sheet in time

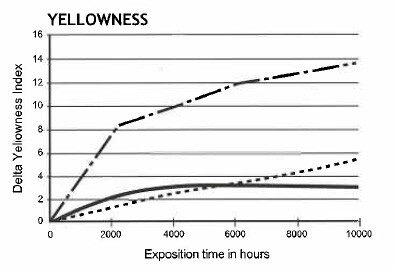

Change in the yellowness index of PC sheet in time
| Type | Setting | Presentation | Color | Application | Length pr Queantity |
|---|---|---|---|---|---|
| Standard U-Profile |  | For 4 & 6 mm, For 8 & 10 mm | Crystal White Bronze | To cover the cells and prevent leaks | 10´ ( 3,66 mts), in pack of 10 pieces |
| Standard H-Profile |  | For 4 & 6 mm, For 8 & 10 mm | Crystal White Bronze | To join multiwall panels | 24´ ( 7,32 mts), in pack of 10 pieces |
| H-Mordaza Profile |  | For 4 & 6 mm, For 8 & 10 mm | Crystal | To join multiwall panels | 24´ ( 7,32 mts), in pack of 10 pieces |
| Vented Tape |  | 16´, 147 ´(5 ml, 45 ml) | Aluminium | To seal allowing breathing the material | min. 10 pieces |
| Aluminum Tape |  | 16´, 147 ´(5 ml, 45 ml) | Aluminium | To seal | min. 10 pieces |
| Buttons |  | For 4 & 6 mm, For 8 & 10 mm | White | When perforation is absolutely necessary | min. 100 pieces |
- In order to avoid condensation in the sheet cells and sheet deterioration, always place the sheet with the cells in the vertical direction.
- Always store the sheets in horizontal position, never against the floor. Apply aluminum tape to seal the cells after cutting the sheet. Do not walk over the sheets.
- Do not apply direct load on the sheet with foot or knee. Use wood platforms or supports to spread out the pressure during installation.
- Remove IIV protecting masking only and right after installation; never before
- and never after hours of being installed.
- Macrolux® PC sheet can be cut to size using tools for standard materials such
- as cutters and saws. However, it is recommended the use of a table with fixed
- knives for a cleaner cut.
- It is not recommended to drill holes in the sheet. Rather the use of aluminum or Polycarbonate profiles to fix the sheets to the structure is recommended.
- Never use PVC profiles when installing Macrolux®PC sheets.
Cleaning and Maintenance
- For general cleaning it is recommended to use a non-abrasive, solvent free neutral soap with water.
- Rinse with high-pressure washer-Use a soft cloth or sponge to loosen any remaining of dirt and grime. Never use abrasive cleaners or brushes. Do not scrub the sheet surface.
- Never clean with gasoline, benzene or acetone.
Bonding Adhesives
It is recommended to use 100% alcoholic based silicone perimeter sealan such as DOW Corning-791 or equivalent
